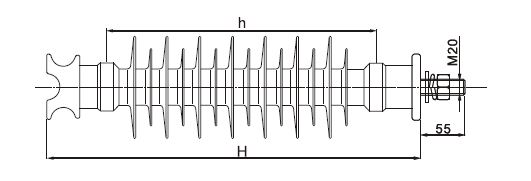

1.Technical data ntawm silicone roj hmab 33kv tus pin insulator
Hom | Qhov siab (kV) | Rated mechanical dabtsi yog khoov load (kN) | Tus qauv qhov siab (hli) | Min nominal creepage nrug (hli) | 1min fais fab zaus ntub qaub voltage (kV) | Tag nro xob laim impulse withstand voltage ncov nqi (kV) |
FPQ-33/4 | 33 | 4 | 365 | 1000 xyoo | 95 | 230 |
2. Silicone roj hmab 33kv tus pin insulator kom zoo dua:
1-Peb siv kub dip Galvanizing steel haum, lub thickness ntawm zinc ntau tshaj 100 μm.
2-Peb siv ob lub hnab ntim khoom nruab nrab ntawm cov roj hmab thiab lub phom.
3-Peb muaj ib tus neeg saib xyuas zaum kawg los xyuas cov khoom ntawm txhua yam thiab cov khoom kom paub tseeb tias nws yeej ncav cuag cov duab.
4-Zoo fais fab kev ua yeeb yam thiab muaj zog tiv thaiv kev ua kom tsis muaj zog nrog kev ua kom tsis muaj zog.
5-Compact design thiab teeb nyob hauv qhov hnyav uas nws yooj yim rau kev thauj mus los.
